Plasma Cutting Service Online

Plasma Cut Parts Online
Aluminium, Steel, Copper
Express Manufacturing within 6 Days
Certifications & inspection reports

Start A New Sheet Metal Quote

STEP | STP | SLDPRT | STL | IPT | 3DXML | CATPART | PTC | PRT | SAT | DXF You can also upload your technical drawings

Start Your New Instant Quote

All uploads are secure and confidential.

Trusted by over 85,000+ engineers & purchasing leaders

Plasma Cutting Services

We offer CNC plasma cutting services for sheet metal. We use two types of plasma cutters 2- and 3-axis, which makes it possible to produce parts of any complexity applicable to this fabrication method. The cut parts can be post-processed upon request with coating, heat treatment and others.

SYR can also provide certifications (certificate of compliance, raw material certificate, etc.) and inspection reports (CMM, FAIR, measurement report) upon request.

Try SYR Out Now In Just A Few Steps

Upload Your CAD Files

Multiple designs for different parts can be imported at the same time to produce a single quote. In less than a minute, a detailed cost estimation appears on the screen.

Choose the Process

First, select the manufacturing process you require. You can then choose from over 150 materials and from a wide range of finishes and certifications.

Order Your Parts Online

Once you have selected the required options, all you need to do is confirm the order and pay for it on the secure payment platform. Your design will be analysed by engineers.

Receive Your Parts

Within a short amount of time, you will receive the parts you ordered directly to your shipping address. You can track your package at any time in your personal account.

Advantages of Plasma Cutting with SYR

Plasma Cutting Materials

Aluminium

Aluminium 5052 / Al-Mg2.5
Aluminium 5083 / Al-Mg4.5Mn
Aluminium 5754 / Al-Mg3
Aluminium 6060 / Al-MgSi
Aluminium 6061 / Al-Mg1SiCu
Aluminium 6082 / Al-Si1Mg
Aluminium 7075 / Al-Zn6MgCu

Steel

Steel 1.2510 / 100MnCrW4, annealed
Steel 1.7218 / 25CrMo4
Steel 1.7225 / 42CrMo4
Steel 1.0503 / C45
Steel 1.1191 / XC48H1 / C45E
Steel 1.0330 / DC01
Steel 1.0117 / S235J2 / S235J2G4
Steel 1.0117 / S235J2 / S235J2G4, pickled and oiled
Steel 1.0038 / S235JR
Steel 1.0044 / S275JR
Steel 1.2379 / X153CrMo12 / SKD11, annealed

Stainless Steel

Metal Sheet Sizes Available at SYR

Material	Available thickness*
Aluminium 5052 / 3.3523 / Al-Mg2,5	1 mm, 1.2 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm
Aluminium 5083 / 3.3547 / Al-Mg4.5Mn	1.5 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm
Aluminium 6060 / 3.3206 / Al-MgSi	2 mm, 3 mm, 4 mm, 5 mm, 6 mm
Aluminium 6061 / 3.3211 / Al-Mg1SiCu	2 mm, 3 mm, 4 mm, 5 mm, 6 mm
Aluminium 6082 / 3.2315 / Al-Si1Mg	2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm
Aluminium 7075 / 3.4365 / Al-Zn6MgCu	2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm
Stainless Steel 304 / 1.4301 / X5CrNi18.10	0.5 mm, 1 mm, 1.5 mm, 2 mm, 3 mm
Stainless Steel 316L / 1.4404 / X2CrNiMo17-12-2	0.8 mm, 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm
Steel 1.2510 / 100MnCrW4, annealed	1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm
Steel 1.7218 / 25CrMo4	1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm
Steel 1.7225 / 42CrMo4	2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm
Steel 1.0503 / C45	6 mm, 8 mm, 10 mm, 12 mm
Steel 1.1191 / XC48H1 / C45E	8 mm, 10 mm, 12 mm, 13 mm, 14 mm
Steel 1.0330 / DC01	0.5 mm, 0.8 mm, 1 mm, 1.5 mm
Steel 1.0117 / S235J2 / S235J2G4	2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 20 mm
Steel 1.0117 / S235J2 / S235J2G4, pickled and oiled	2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm
Steel 1.0038 / S235JR	2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 16 mm
Steel 1.0044 / S275JR	1 mm, 1.5 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm, 4 mm
Steel 1.2379 / X153CrMo12 / SKD11, annealed	2 mm, 3 mm, 5 mm
	*Other sizes available on request; manual calculation required.

Plasma Cutting Finishing Options

Bead blasting

Bead blasting involves spraying a pressurised stream of tiny beads of media, plastic or glass beads, from a nozzle onto the surface of the part. This removes the burrs and imperfections, leaving a smooth finish.

Anodising (type II)

Type II anodise provides increased corrosion resistance and can be used as a base for paint and other finishes.

Hardcoat anodising (type III)

Type III hardcoat anodise produces a thicker layer of standard anodising, making it more durable and wear-resistant. Can be used as a base for paint and other finishes.

Powder coating

Provides a continuous, protective colour finish on parts using evenly applied, heat-cured paint. The finish is usually tougher and even compared to conventional painting.

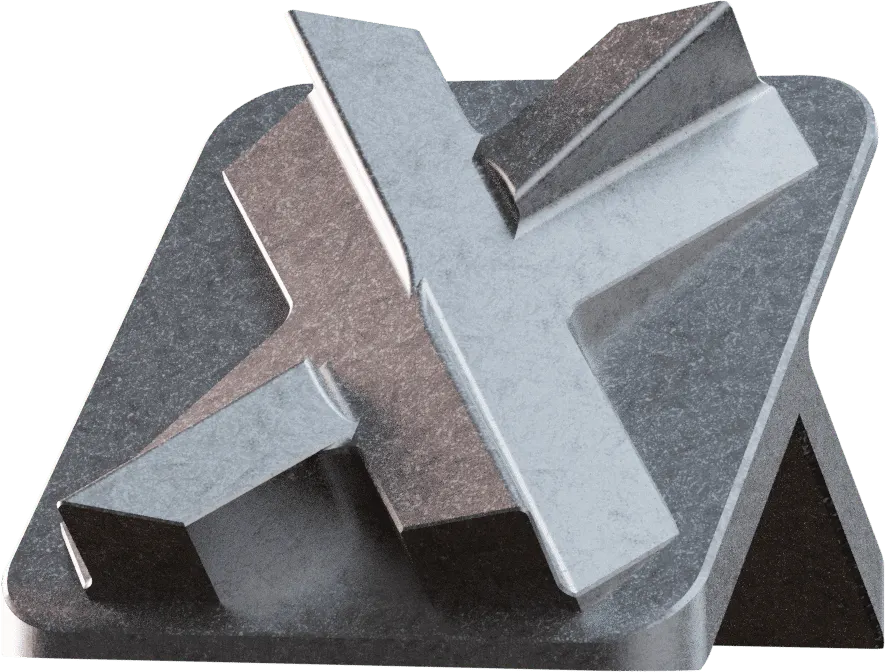

Media tumbling

Tumbling vibrating media to remove sharp edges and burrs on machined parts.

Electropolishing

An electrochemical process that cleans steel parts to reduce corrosion and improve appearance by making the metal brighter.

Passivation

A colorless coating that improves corrosion resistance for 200 and 300 series and precipitation hardened corrosion-resistant steels by removing free iron from the surface.

Electroless nickel plating

Electroless nickel plating provides a uniform nickel coating, which offers protection from corrosion, oxidation, and wear on irregular surfaces.

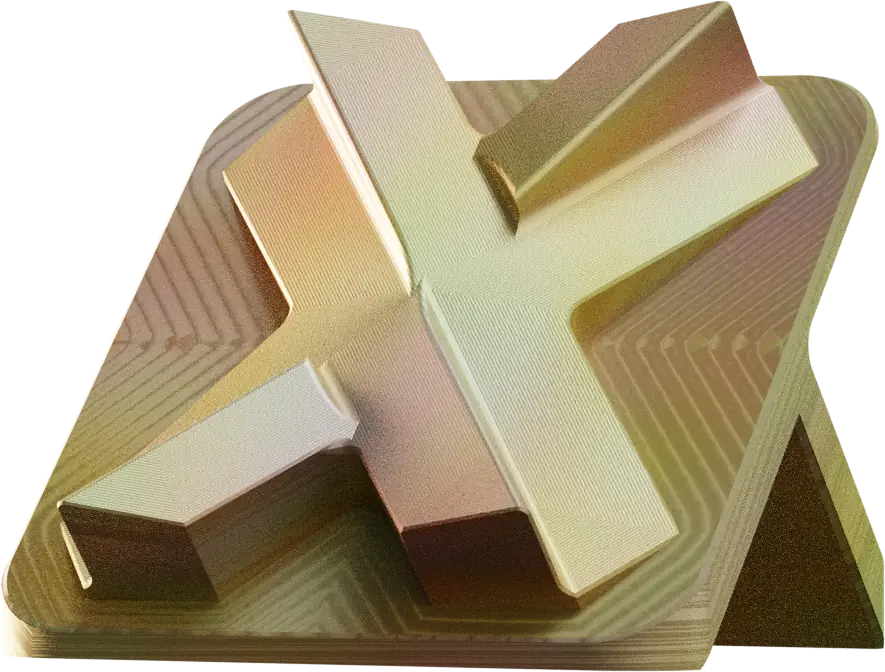

Chromate conversion

Chromate conversion coatings, also known as chem-film, enhance corrosion resistance and conductivity properties and can be used as a base for paint. Type I chromate conversion caused the coating to appear gold or brown in color typically

Zinc coating / Galvanising

Zinc plating involves the electrodeposition of a thin coating of zinc metal onto the surface of another metal object, known as a substrate. The zinc coating creates a physical barrier that prevents rust from reaching the underlying metal surface.

Gold plating

Gold Plating provides good corrosion and tarnish resistance. Gold has low contact resistance, excellent conductivity, and solderability.

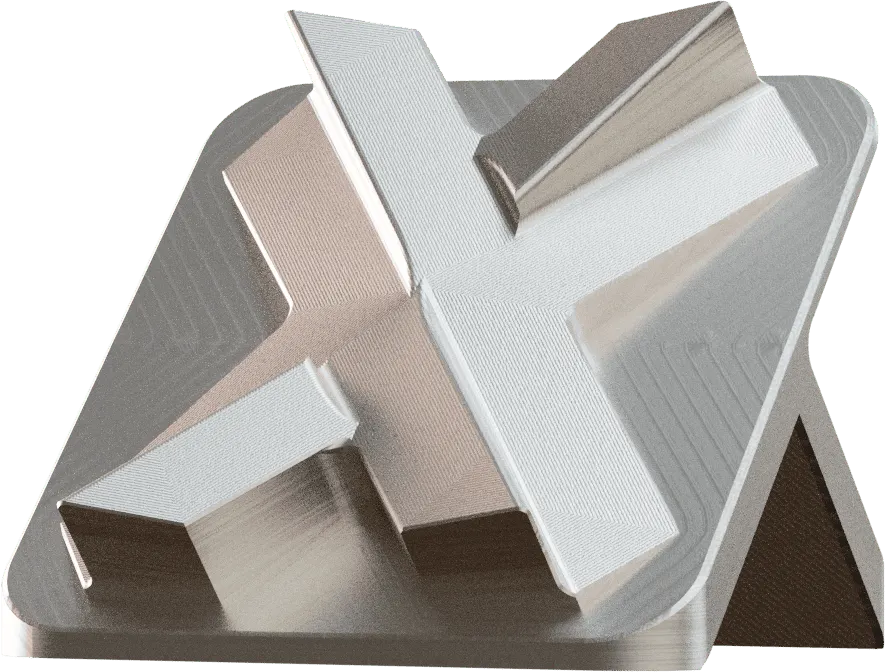

Silver plating

Electroplating silver provides good corrosion resistance but easily tarnishes. Silver offers high solderability and electrical conductivity.

Black oxide

Black oxide is a type of conversion coating for ferrous materials, such as steel and stainless steel, which blackens the top layer of the material. It can be used to reduce reflection and glare, as well as provide some additional corrosion resistance without affecting part dimensions.

Annealing

The annealing process involves the heating of a metal to or near the temperature at which recrystallisation begins without change in the stresses. After heating, the metal is cooled to room temperature in the oven or put in the sand.

Case-hardening (Carburising)

A heat treatment process which includes hardening the surface of metal while allowing the metal underneath to remain soft. As the name implies, carburising is inducting carbon or nitrogen into low-carbon alloys at elevated temperatures so that the hardenability increases.

Tempering

A heat treatment method that is mainly dedicated to reducing the amount of hardness of metals. It involves heating the metal to a temperature below the critical point. The temperature is adjusted depending on the amount of hardness that needs to be reduced and it varies depending on the metal type as well.

Through hardening

Through hardening, also known as quench hardening, is a heat treatment process used to increase the hardness and strength of a material by heating it to a high temperature and then rapidly cooling it, usually by immersing it in a quenching medium such as oil, water, or air.

Custom

If you select a custom finish in the Instant Quoting Engine it will require manual review. Manual quoting usually 1-2 business days.

Plasma Cutting Specifications & Capabilities

Thickness Ranges	Standard Сutting Areas
Aluminium: 1.0-50 mm	1000×2000 mm, 1250×2500 mm, 1500×3000 mm
Steel: 1.0-80 mm	1500×3000 mm, 2000×3000 mm, 1500×6000 mm
Stainless Steel: 1.0-50 mm

Overview: What is Plasma Cutting?

The Basics Of Plasma Cutters
