HP Multi Jet Fusion (MJF) Services Online

PA 12, PA 11, TPU 95A
Manufacturing From 3 Business Days

Start A New 3D Printing Quote

STEP | STP | SLDPRT | STL | IPT | 3DXML | CATPART | PTC | PRT | SATS

Start Your New Instant Quote

All uploads are secure and confidential.

Trusted by over 85,000+ engineers & purchasing leaders

HP MJF 3D Printing Capacities

HP Multi Jet Fusion is a powerful 3D printing technology that produces highly accurate and durable parts at fast speeds, especially compared to other powder bed fusion technologies. Multi Jet Fusion parts are great for end-use, low-to-mid volume production, rapid prototyping, or as a bridge process to injection moulding. MJF printed parts can be post-processed by dyeing, sanding and plating.

Lead time: 3 days
Build volume: up to 380 x 284 x 380 mm, while we normally recommend the maximum size of 356 x 280 x 356 mm
Layer thickness: ~0.08 mm
Minimum feature size: 0.5 mm
Minimum wall thickness: 0.6 mm (supported), 0.7 mm (unsupported)*
Tolerance: ±0.3% (± 0.2 mm)

*Please note that parts with a wall thickness above 7 mm will be hollowed

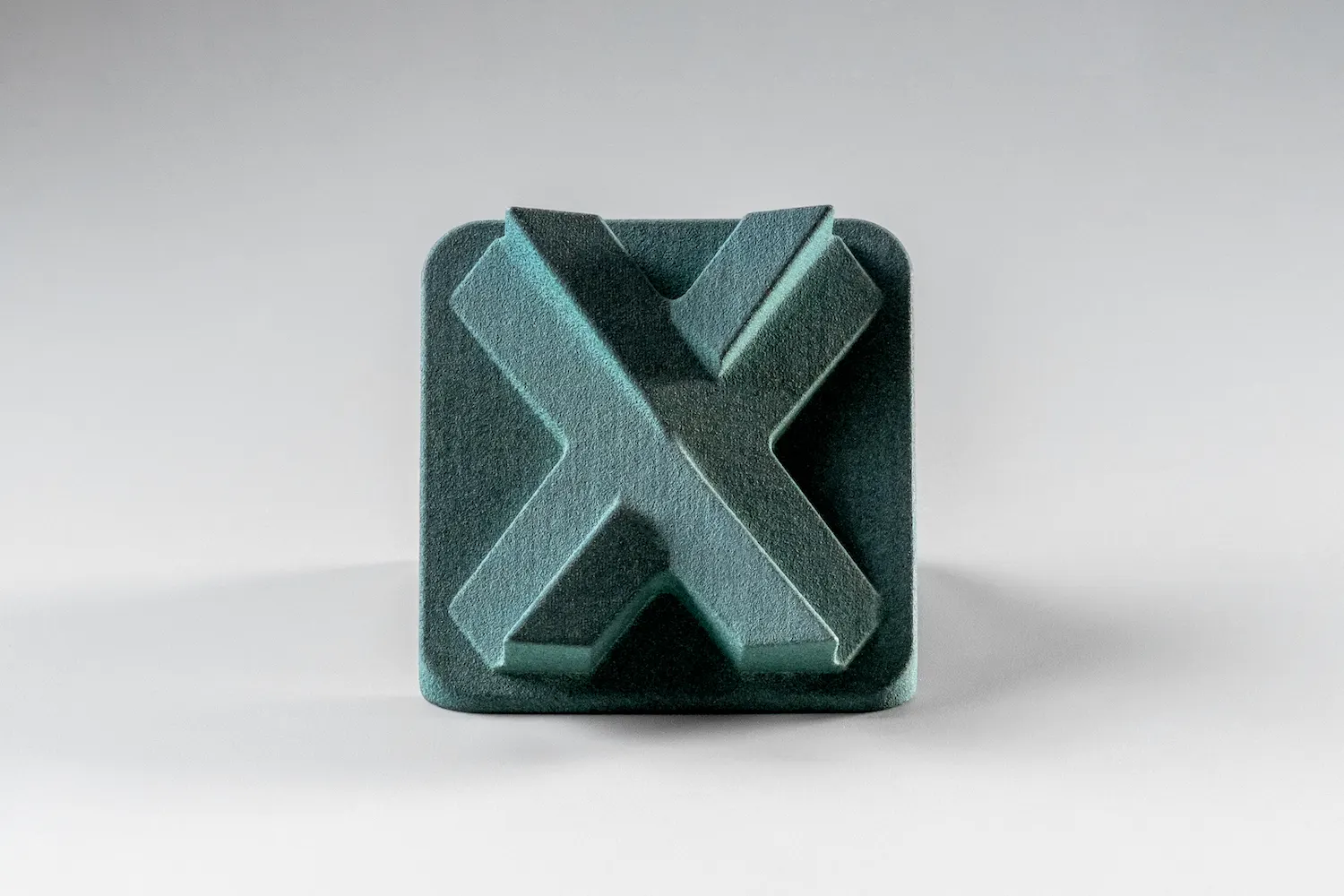

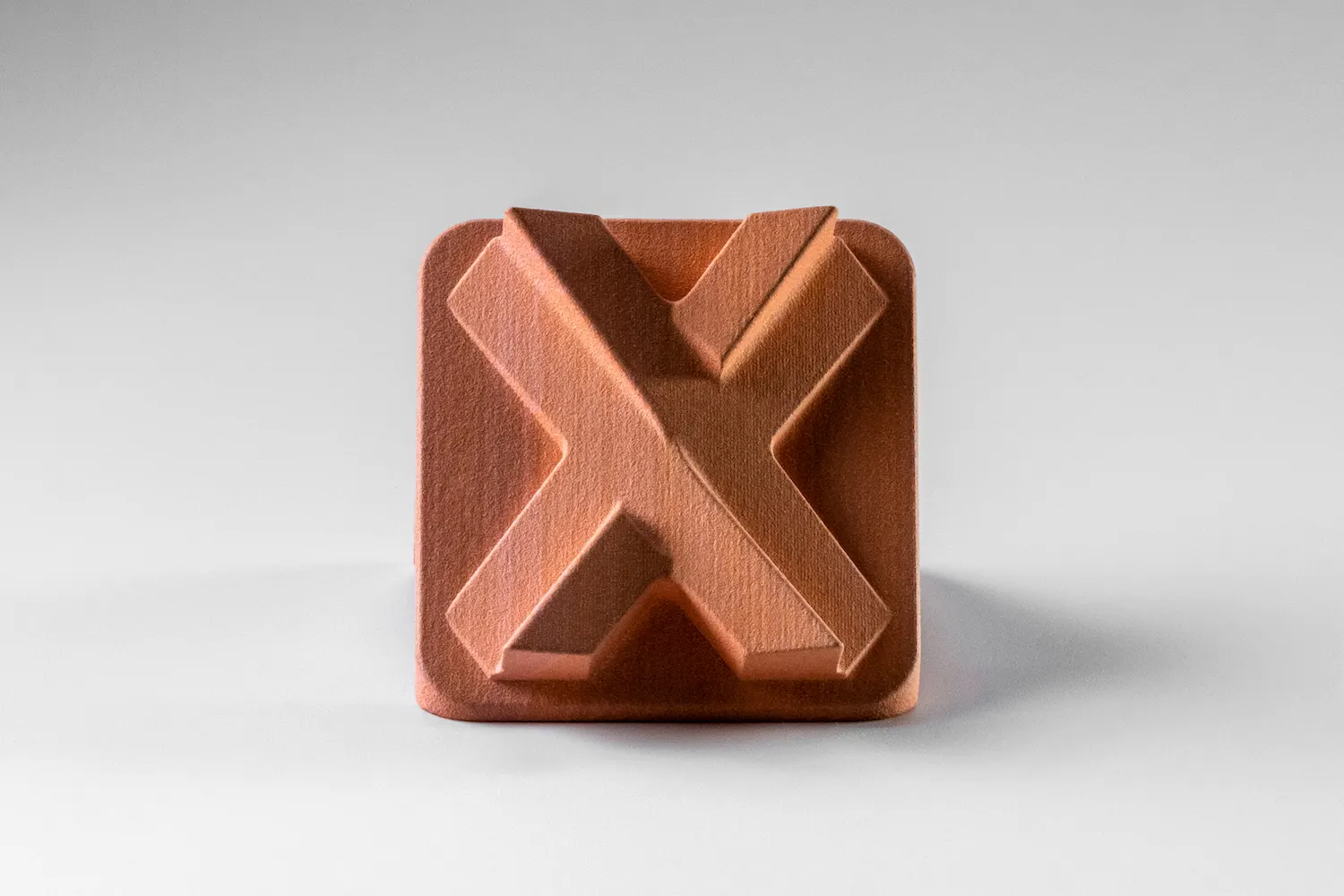

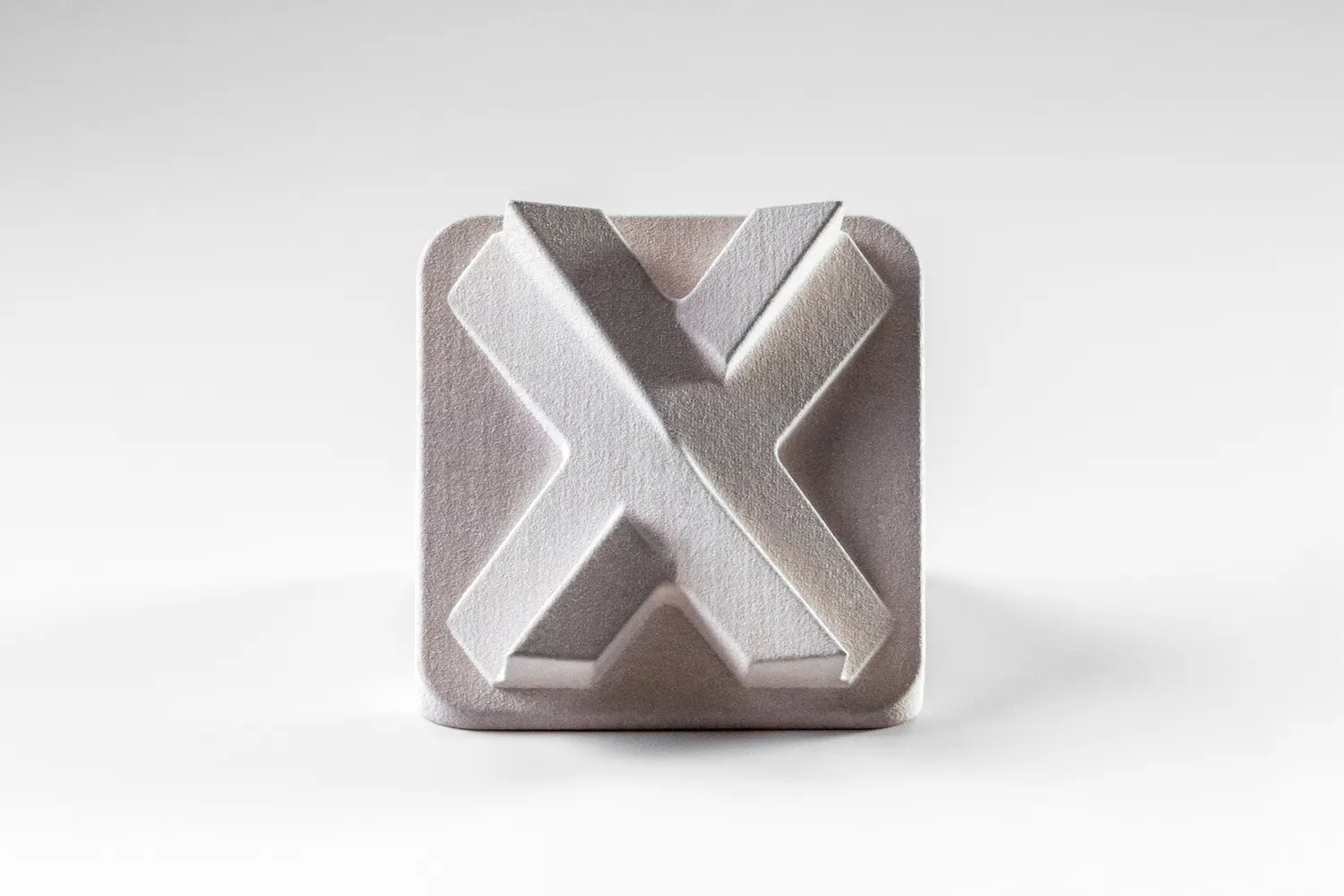

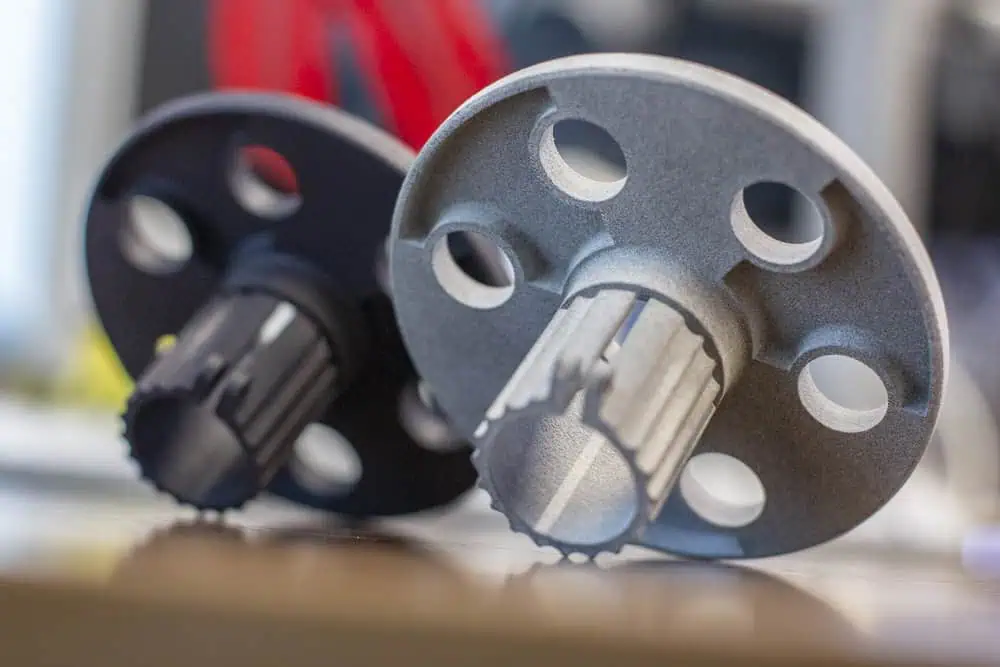

3D printed parts with MJF technology

Try SYR Out Now In Just A Few Steps

Upload Your CAD Files

Multiple designs for different parts can be imported at the same time to produce a single quote. In less than a minute, a detailed cost estimation appears on the screen.

Choose the Process

First, select the manufacturing process you require. You can then choose from over 150 materials and from a wide range of finishes and certifications.

Order Your Parts Online

Once you have selected the required options, all you need to do is confirm the order and pay for it on the secure payment platform. Your design will be analysed by engineers.

Receive Your Parts

Within a short amount of time, you will receive the parts you ordered directly to your shipping address. You can track your package at any time in your personal account.

Advantages of HP MJF with SYR

HP MJF 3D Printing Materials

Rigid Plastics

Nylon 11 / PA 11
Nylon 12 (PA 12) glass-filled
Nylon 12 / PA 12 (SLS, MJF)
Nylon 12 full-colour / CB PA 12
Polypropylene (PP)

Flexible Plastics

Finishing Options

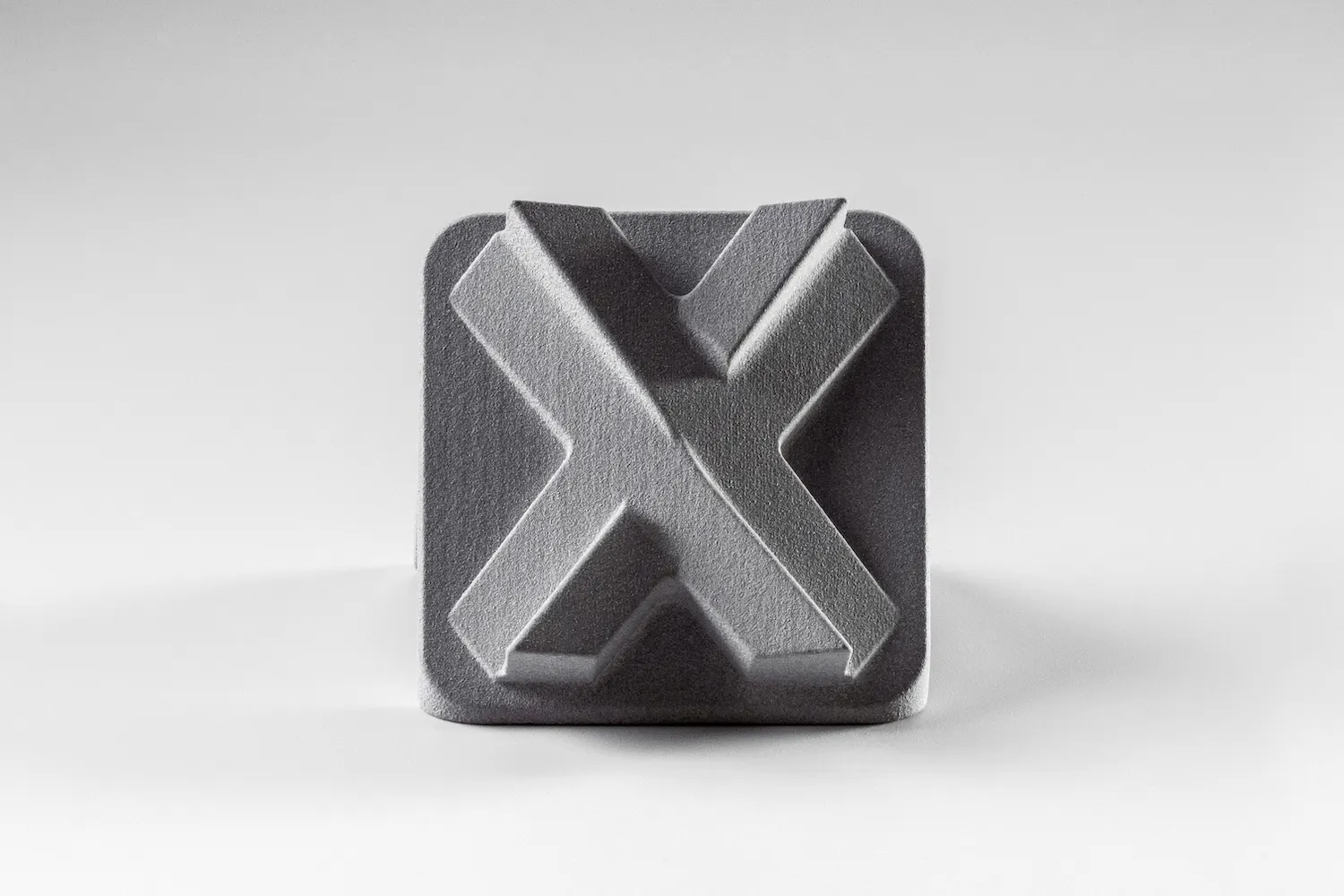

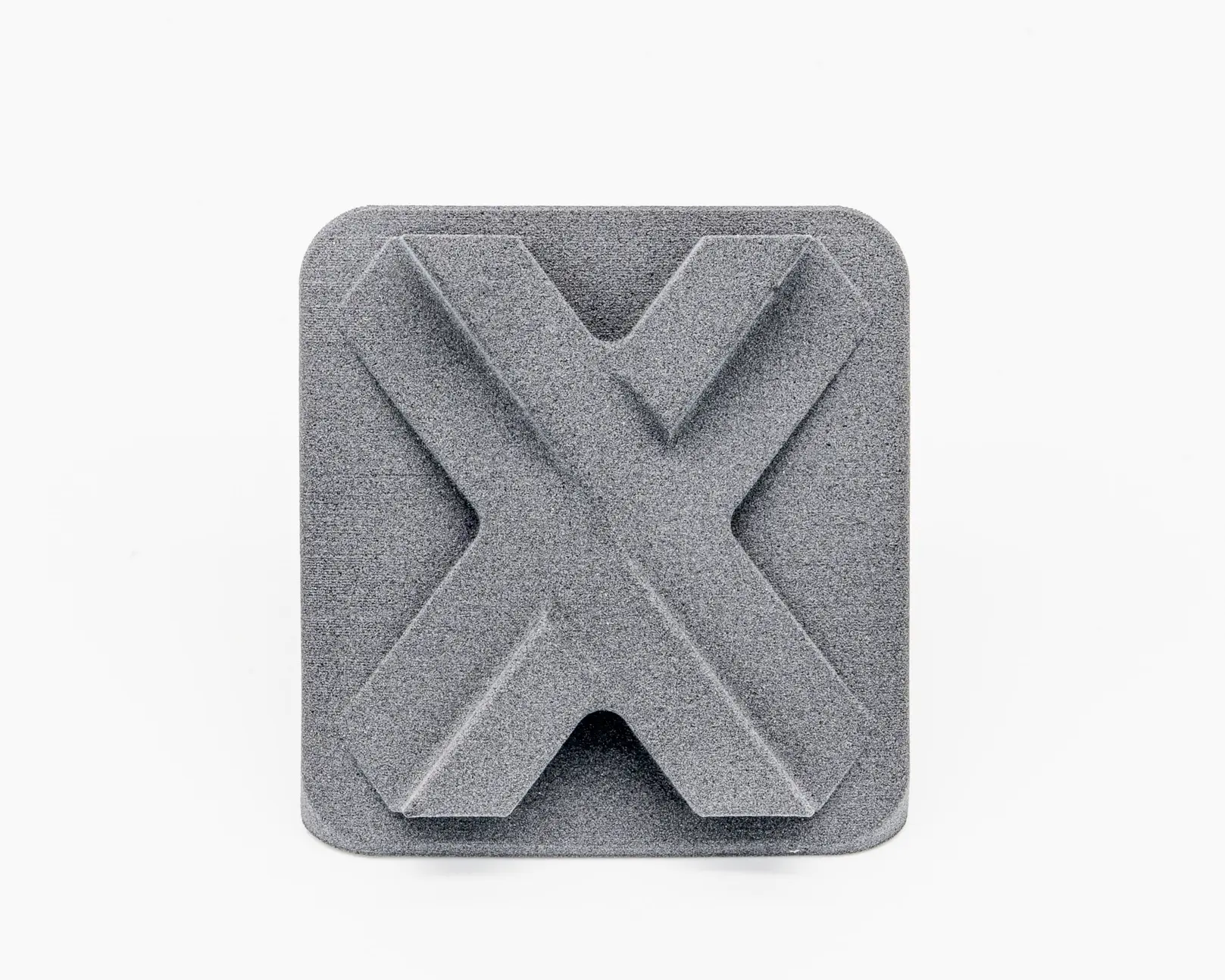

As-printed

Parts are de-powdered with a sandblasting process and manual powder removal. The standard finish is matte with a sugar cube-like texture.

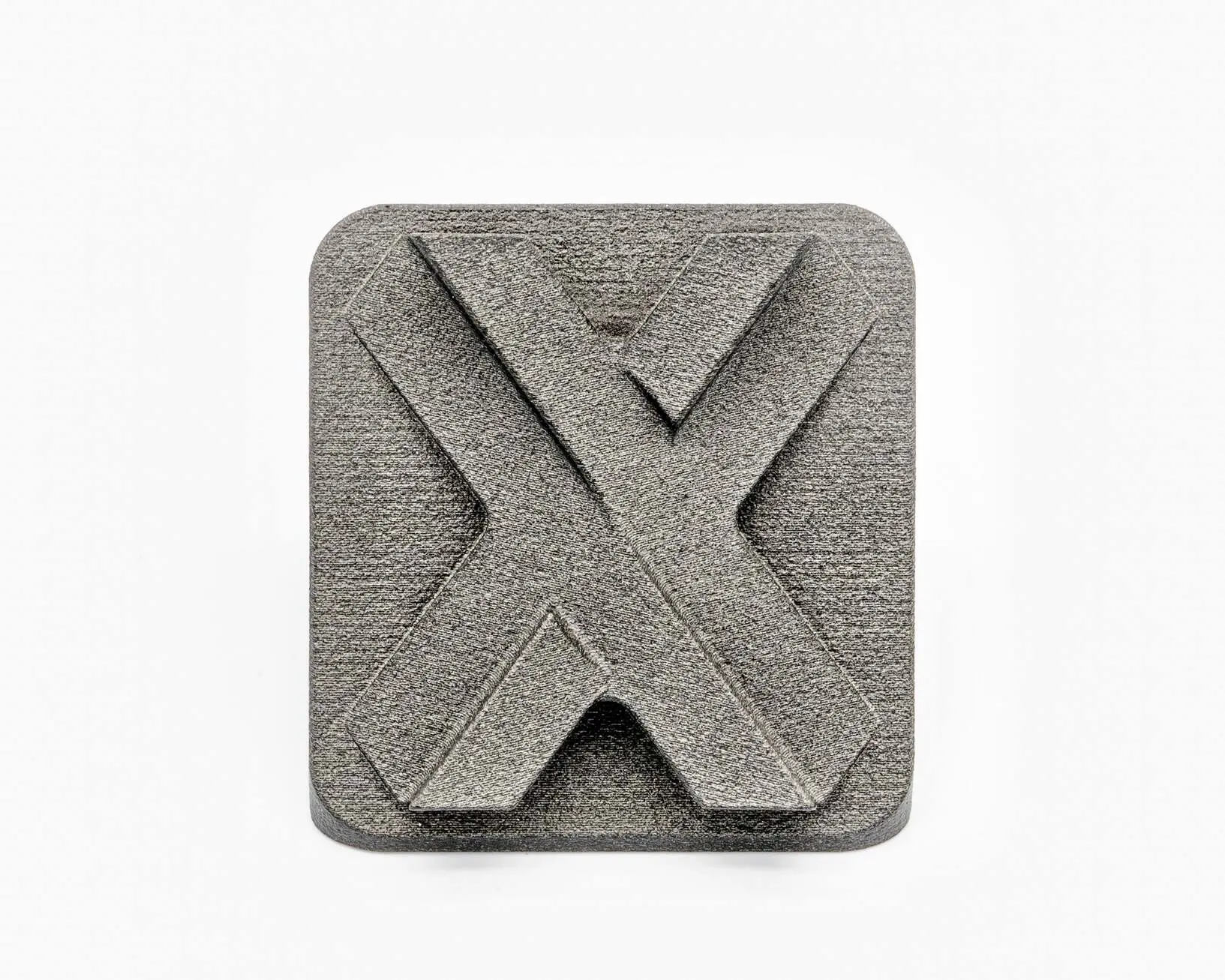

Vapour smoothing

Bathing printed parts in vaporised chemical solvents to create a controlled chemical melt of the material.

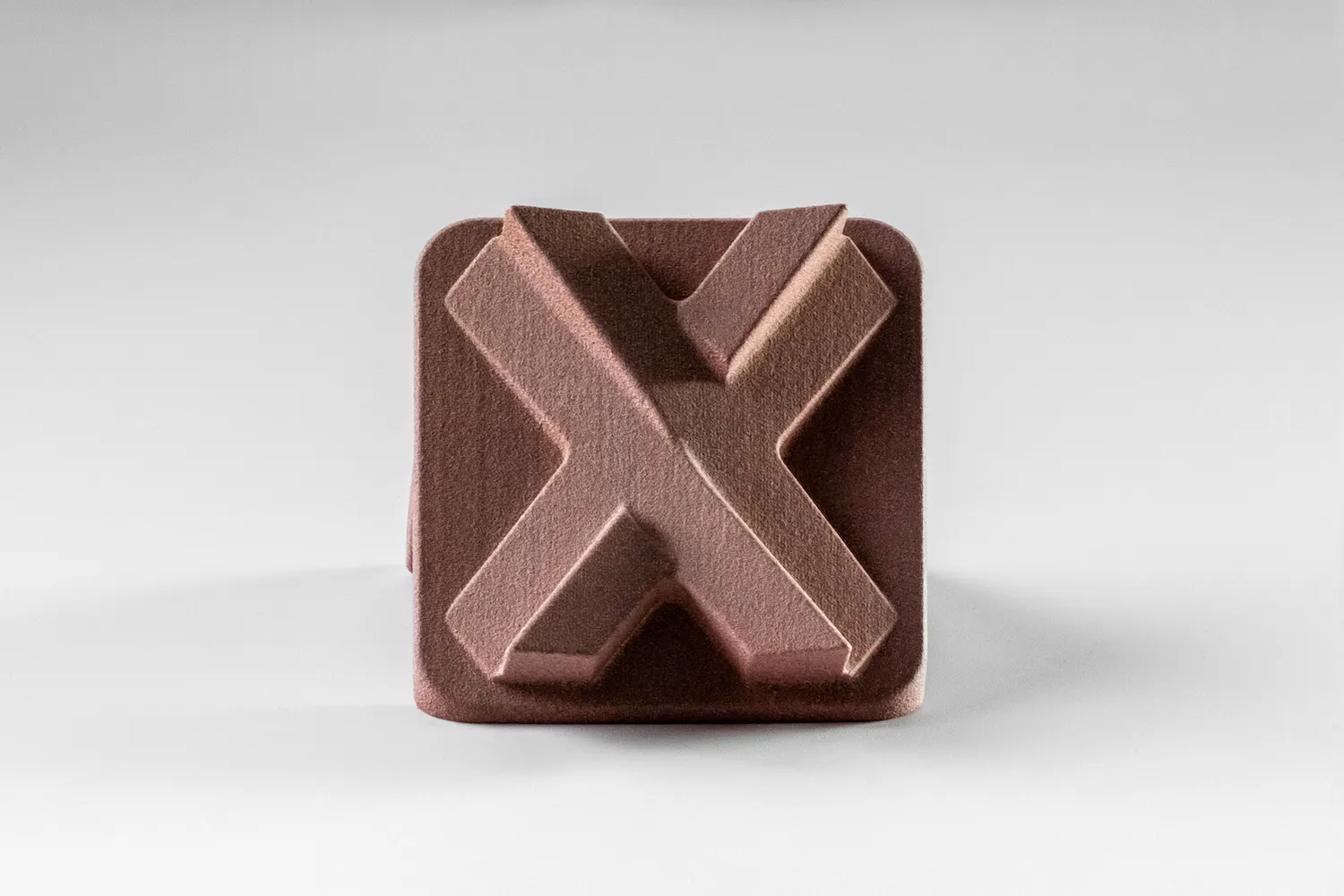

Dyeing

Colouring parts using dye.

Spray painting

Provides a continuous, protective color finish which is applied by spraying.

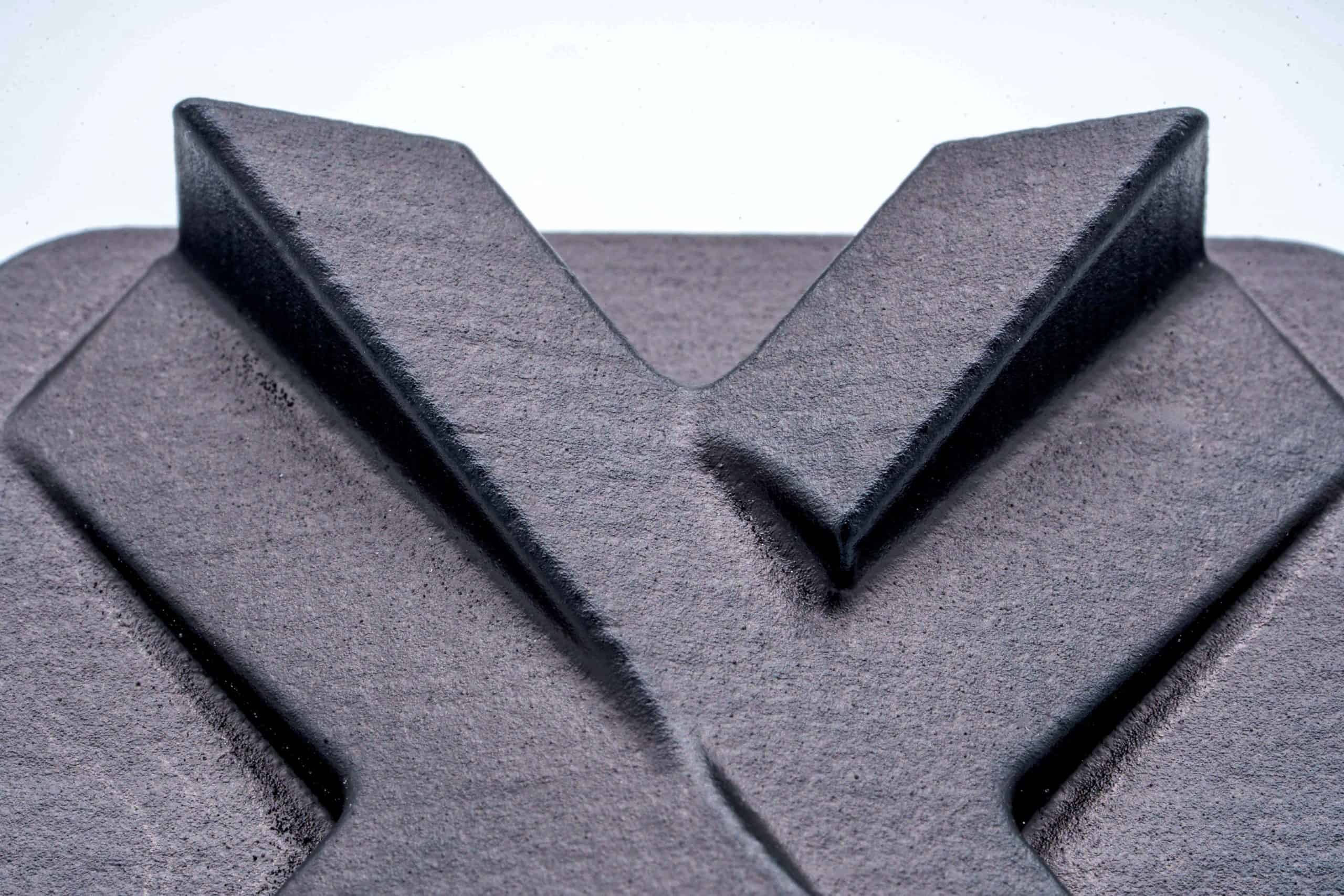

SLS PA12 vapour smoothed and dyed in black

Vapour smoothing + dyeing

Parts are first bathed in vaporised chemical solvents, creating a controlled chemical melt that softens sharp edges and results in a smooth, glossy appearance. Following this, the parts are dyed with the chosen colour.

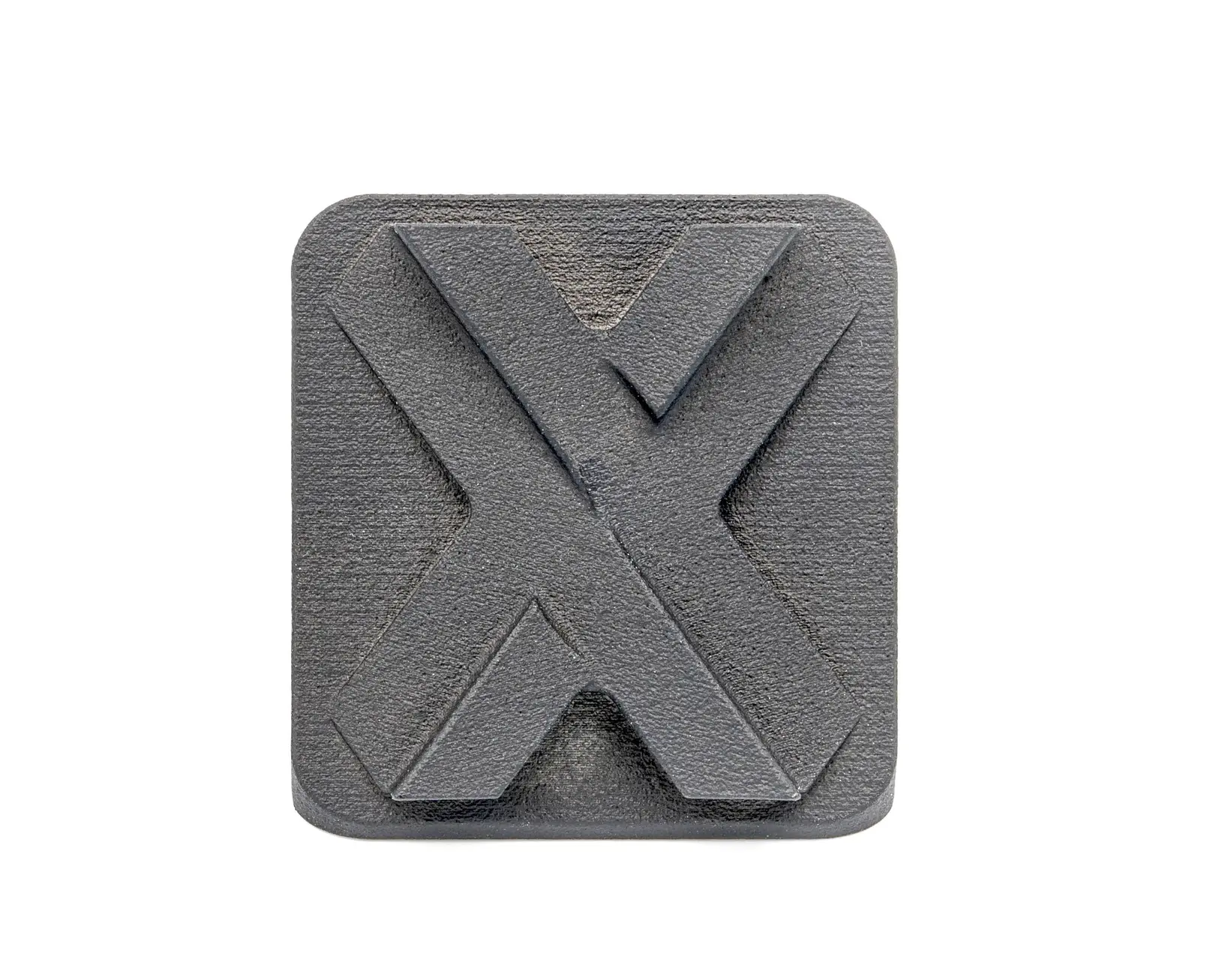

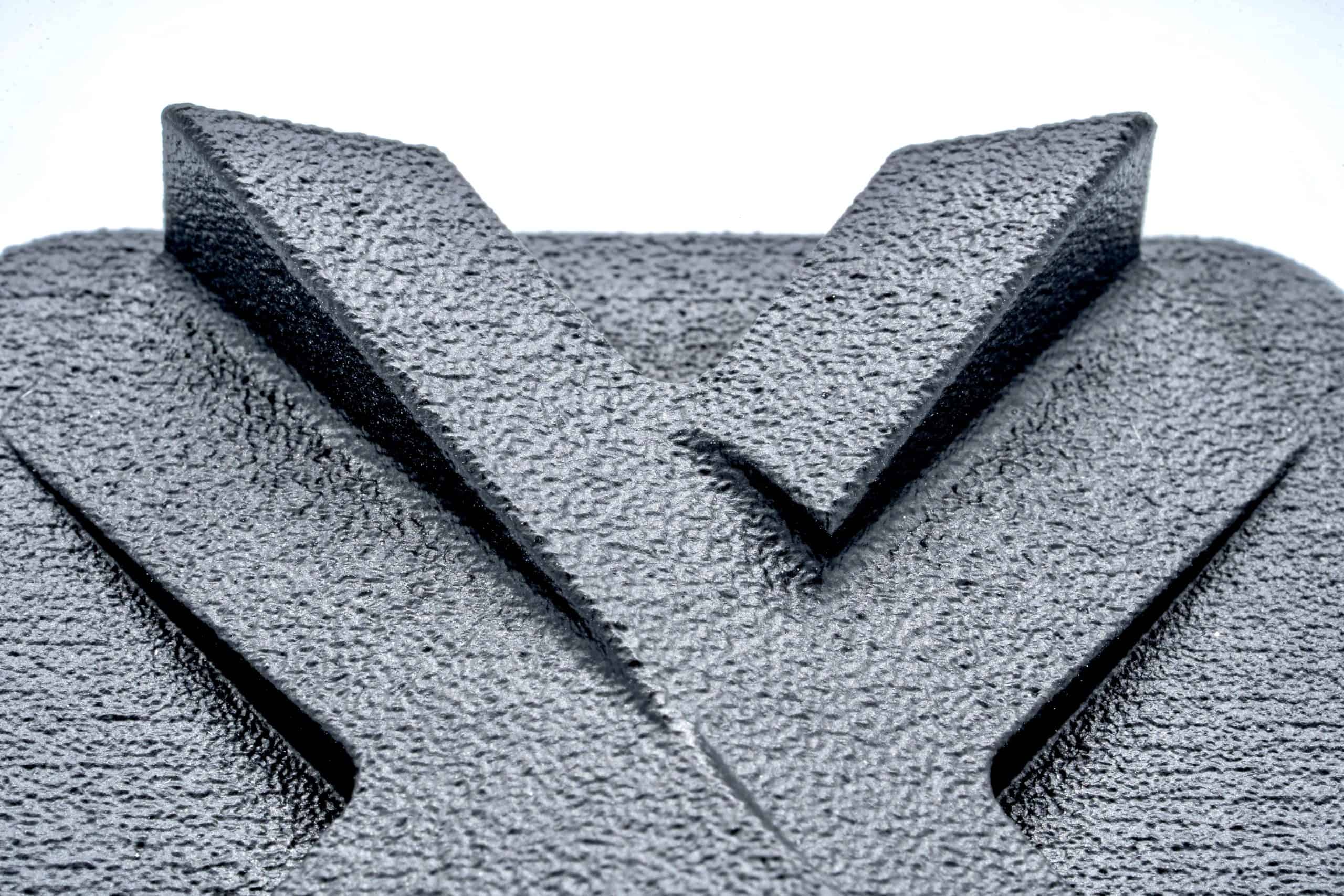

MJF PA12 vapour smoothed + spray painted in black

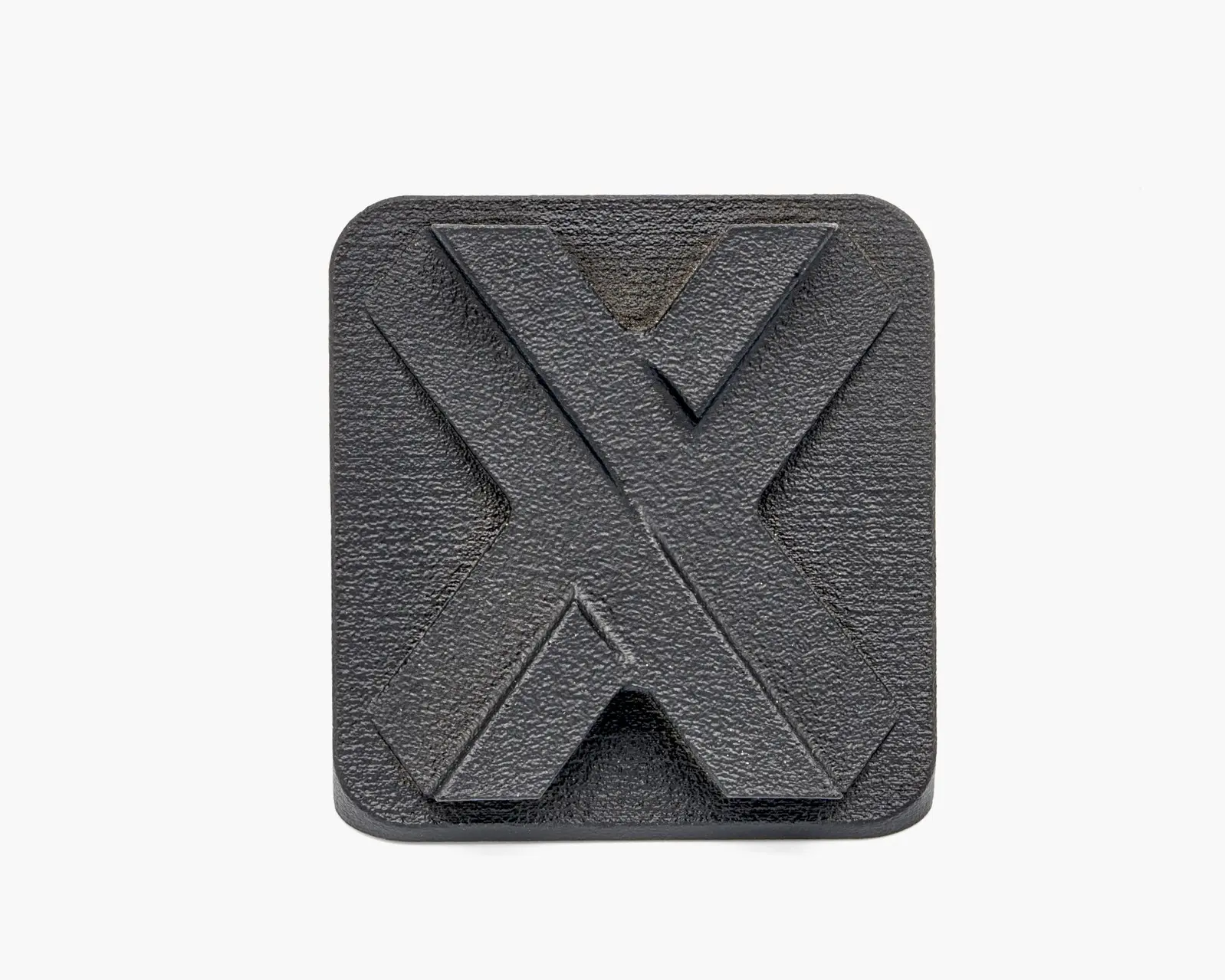

Vapour smoothing + spray painting

Parts are first bathed in vaporised chemical solvents, creating a controlled chemical melt that softens sharp edges. The parts are then spray painted to apply a continuous, protective colour finish.

Custom

If you select a custom finish in the Instant Quoting Engine it will require manual review. Manual quoting usually 1-2 business days.

Pros & Cons of MJF 3D Printing

Advantages	Considerations
Free form design: doesn’t need support features	Limited material and colour choice
Versatile, durable, flexible and chemical resistant material (Nylon)	Surface roughness (however, could be reduced by media tumbling)
Scalable into series	Warping issues for large feature
Fast: Xometry can deliver them in just 3 days
Cheap, especially for small series

HP MJF Manufacturing Specifications & Capabilities

	HP MJF	SLS	SLA	FDM	Carbon DLS	DMLS	Polyjet
Lead time	3 days	3 days	7 days	8 days	5 days	10 days	7 days
Build volume	up to 380 x 284 x 380 mm, while we normally recommend the maximum size of 356 x 280 x 356 mm	up to 340 x 340 x 605 mm, but usually, we recommend the maximum size of 320 x 320 x 580 mm	• 145 × 145 × 185 mm (Standard) • 736 x 635 x 533 mm (Industrial)	• 350 x 350 x 350 mm (Standard) • 900 x 600 x 900 mm (Industrial)	up to 119 x 189 x 300 mm. Recommended size: Within 100 x 100 x 150 mm	400 x 400 x 400 mm	up to 490 mm x 391 mm x 200 mm
Layer thickness	~0.08 mm	~0.1 mm and for water-tight parts 1.5 mm, when wall thickness is higher	min 0.02	~0.05-0.3 mm	~0.1 mm	0.02 – 0.08 mm depending on the material	0.04 mm
Minimum feature size	0.5 mm	0.5 mm	0.2 mm	up to 0.2 mm	0.5 mm	0.75 mm for cosmetic features, 1.5 mm for structural features	1.2 mm or greater for rigid. 2 mm or greater for rubber-like
Tolerance	±0.3% (± 0.2 mm)	±0.3% (± 0.3 mm)	• ±0,5% (±0,2 mm) (Standard) • ±0,5% (±0,15 mm) (Industrial)	±0,5% (±0,5 mm) (Standard & Industrial)	±0.1% (±0.1 mm). However, tolerances are not guaranteed on the first attempt at a new design.	±0.2% (±0.1 – 0.2 mm)	±0.1 mm for the first dozens of mm is typical, plus ±0.05 mm for every mm thereafter
Description	A technology that produces highly accurate and durable parts at fast speeds, especially compared to other powder bed fusion technologies	One of the most popular and inexpensive technologies for industrial 3D printing	A technology that produces extremely accurate and high-resolution parts	Widely known for a great material selection, accuracy, and possibility to print large parts	A breakthrough technology that uses digital light projection, programmable liquid resins, and oxygen-permeable optics to produce parts with exceptional durability, resolution, and surface finish	Metal 3D printing technology. Selectively fuses a fine metal powder in aluminium or stainless steel	Polyjet is a rigid photopolymer 3D printing technology that produces high-detailed models
Support structures	No	No	Yes, for overhanging features	Yes, for overhanging features	Yes, for overhanging features	Yes, for overhanging features	Yes, for overhanging features
	Read more about HP MJF	Read more about SLS	Read more about SLA	Read more about FDM	Read more about Carbon DLS	Read more about DMLS	Read more about Polyjet
